Honda CB300F 2015 dashboard

Honda CB300F (2015-2021)

Honda CB300F (2015-2021)

Category: Tag:

Specifications

Engine

286cc Single cylinder, Liquid cooled

Power

26 hp @ 8500 rpm

Torque

27 Nm @7250 rpm

Transmission

6-speed, Wet multi-plate clutch, chain final drive

Fuel Capacity

13 liters

Length

2035 mm

Width

720 mm

Height

1120 mm

Weight

158 kg wet

Seat Height

790 mm

Suspension

– Front: 37 mm telescopic fork, 120 mm travel
– Rear: mono-shock, preload adjustable, 103 mm travel

Tyres

– Front: 110/70-17
– Rear: 140/70-17

Brakes

– Front: 296 mm disc, 2-piston caliper
– Rear: 220 mm disc, single-piston caliper
– ABS available

Instruments

LCD display with tachometer, odometer, speedometer, fuel gauge, trip meter, clock

Other

Dashboard / Support us

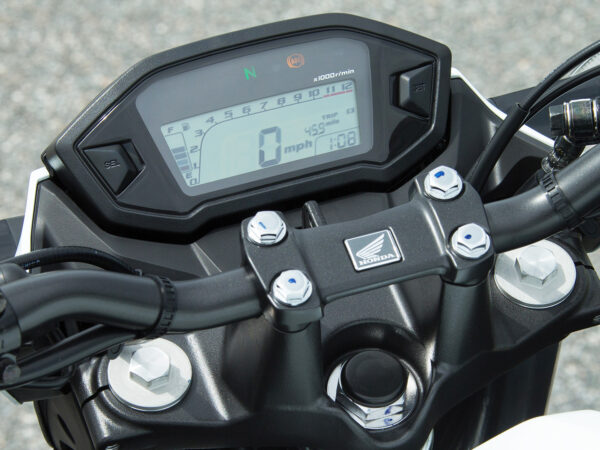

Honda CB300F 2015 dashboard



CB300F t-shirts, mugs, stickers and more:

Quick Comparison

SettingsHonda CB300F (2015-2021) removeHonda Africa Twin (2020+) removeHonda CB750 Hornet (2023+) removeHonda XRE 300 (2019+) removeHonda Rebel 1100/CMX1100 (2021+) removeHonda NC750X (2021+) remove
NameHonda CB300F (2015-2021) removeHonda Africa Twin (2020+) removeHonda CB750 Hornet (2023+) removeHonda XRE 300 (2019+) removeHonda Rebel 1100/CMX1100 (2021+) removeHonda NC750X (2021+) remove
Size Estimator (see "About" page to learn more)Honda CB300f 2017 silverHonda Africa Twin 2022 Grand Prix RedHonda CB750 Hornet 2023 Matte Iridium Gray MetallicHonda XRE300 2022 greyHonda Rebel 1100 CMX1100 2022 Bordeaux Red MetallicHonda NC750X 2022 Grand Prix Red
Length2035 mm2330 mm2090 mm2195 mm2240 mm2210 mm
Width720 mm960 mm780 mm838 mm850 mm (830 mm DCT)846 mm
Height1120 mm1395 mm1085 mm1215 mm1115 mm1330 mm
Seat Height790 mm850/870 mm795 mm860 mm700 mm800 mm
Weight158 kg wet226 kg (manual), 236 kg (DCT) wet190 kg wet148 kg dry223 kg wet (233 kg DCT)214 kg (manual), 224 kg (DCT) wet
Engine286cc Single cylinder, Liquid cooled1084 cc Parallel Twin, liquid cooled755cc Parallel Twin, liquid cooled, 270º crank291,6 cc Single-cylinder, air cooled1084cc Parallel Twin, liquid cooled, 270º crank745 cc Parallel Twin, liquid cooled
Power26 hp @ 8500 rpm100 hp @ 7500 rpm90,5 hp @ 9500 rpm25,4 hp @ 7500 rpm87 hp @ 7000 rpm58 hp @ 6750 rpm
Torque27 Nm @7250 rpm105 Nm @ 6250 rpm75 Nm @ 7250 rpm27,4 Nm @ 6000 rpm98 Nm @ 4750 rpm69 Nm @ 4750 rpm
Transmission6-speed, Wet multi-plate clutch, chain final drive6-speed manual, Wet multi-plate assist/slip clutch or DCT automatic, chain final drive6-speed manual, Wet multi-plate assist/slip clutch, chain final drive5-speed, Wet multi-plate clutch, chain final drive6-speed (manual or automatic/DCT), slip/assit clutch, chain final drive6-speed manual, Wet multi-plate assist/slip clutch or DCT automatic, chain final drive
Fuel Capacity13 liters18,8 liters15,2 liters13,8 liters13,6 liters14,1 liters
Suspension- Front: 37 mm telescopic fork, 120 mm travel - Rear: mono-shock, preload adjustable, 103 mm travel- Front: 45 mm inverted forks, pre-load and DF adjustable, 230 mm travel - Rear: Pro-link mono shock, pre-load and rebound adjustable, 220 mm travel- Front: 43 mm inverted forks, pre-load adjustable, 130 mm travel - Rear: Pro-link mono shock, pre-load adjustable, 150 mm travel- Front: telescopic fork, 245 mm travel - Rear: mono-shock, 225 mm travel- Front: 43 mm telescopic forks, adjustable preload, 122 mm travel - Rear: Dual shocks, adjustable preload, 94 mm travel- Front: 41 mm telescopic forks, 120 mm travel - Rear: Pro-link mono shock, pre-load adjustable, 120 mm travel
Tyres- Front: 110/70-17 - Rear: 140/70-17- Front: 90/90-21 - Rear: 150/70-18- Front: 120/70-17 - Rear: 160/60-17- Front: 90/90-21 - Rear: 120/80-18- Front: 130/70B18 M/C - Rear: 180/65B16 M/C- Front: 120/70-17 - Rear: 160/60-17
Brakes- Front: 296 mm disc, 2-piston caliper - Rear: 220 mm disc, single-piston caliper - ABS available- Front: 310 mm floating discs, 4-piston calipers - Rear: 256 mm disc, single-piston caliper - ABS available- Front: 296 mm discs, 4-piston caliper - Rear: 240 mm disc, single-piston caliper - ABS available- Front: 256 mm disc - Rear: 220 mm disc - ABS available- Front: 300 mm floating disc, 4-piston caliper - Rear: 256 mm disc, 2-piston caliper, - ABS available- Front: 320 mm disc, two-piston caliper - Rear: 240 mm disc, single-piston caliper - ABS available
InstrumentsLCD display with tachometer, odometer, speedometer, fuel gauge, trip meter, clock- LCD display with speedometer, odometer, gear indicator - TFT touch display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption, riding modes, Apple CarPlay, Android AutoTFT touch display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption, riding modesLCD display with tachometer, odometer, speedometer, fuel gauge, trip meter, clockInverted LCD display with speedometer, tachometer, gear-position indicator, a fuel-indicator, engine output mode, torque control level, engine braking modeLCD display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption
Other-LED lights, traction control, cruise control, wheelie control, USB socket, self-canceling indicators, riding modes, switchable cornering ABSLED lights, traction control, cruise control, wheelie control, engine braking, riding modes, USB-C socket, self-canceling indicators, smartphone voice controlLED lightsFull LED lighting, traction control, cruise control, wheelie control (!), USB-C under seat, three-liter underseat storageLED lights, riding modes, traction control, engine brake control, engine power control, emergency stop blinking lights, 23-liter utility compartment
