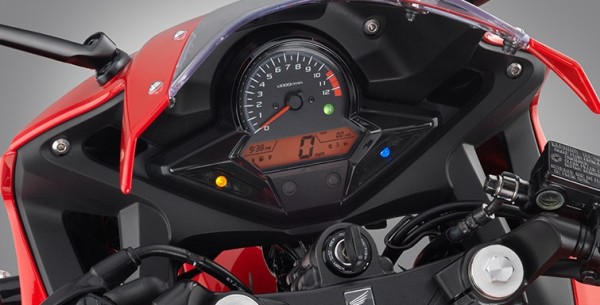

Honda CBR300R 2015 dashboard

Honda CBR300R (2014+)

Honda CBR300R (2014+)

Category: Tag:

Specifications

Engine

286 cc Single-cylinder, liquid cooled

Power

30 hp @ 8500 rpm

Torque

27 Nm @ 7250 rpm

Transmission

6-speed, wet multi-plate clutch, chain final drive

Fuel Capacity

13 liters

Length

2035 mm

Width

720 mm

Height

1120 mm

Weight

162 kg wet

Seat Height

780 mm

Suspension

– Front: 37 mm forks, 120 mm travel
– Rear: mono-shock, adjustable preload, 103 mm travel

Tyres

– Front: 110/70-17
– Rear: 140/70-17

Brakes

– Front: 296 mm disc, 2-piston caliper
– Rear: 220 mm disc, 1-piston caliper
– ABS available

Instruments

Analogue tachometer, LCD display with speedometer, odometer, clock, trip meter, fuel gauge, temperature gauge

Other

Dashboard / Support us

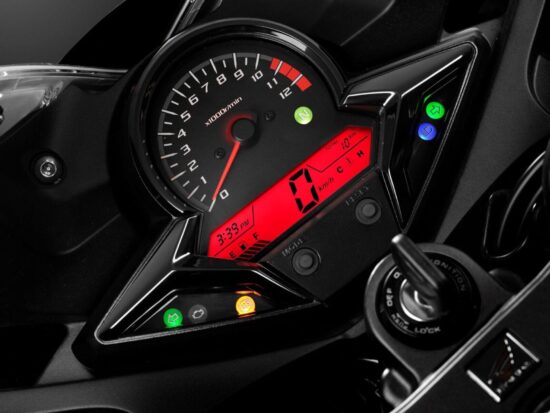

Honda CBR300R 2015 dashboard



CB300R t-shirts, mugs, stickers and more:

Quick Comparison

SettingsHonda CBR300R (2014+) removeHonda CBR650R (2021+) removeHonda Trail 125 / CT125 (2021+) removeHonda NC750X (2021+) removeHonda CB650R (2021+) removeHonda Rebel 1100/CMX1100 (2021+) remove
NameHonda CBR300R (2014+) removeHonda CBR650R (2021+) removeHonda Trail 125 / CT125 (2021+) removeHonda NC750X (2021+) removeHonda CB650R (2021+) removeHonda Rebel 1100/CMX1100 (2021+) remove
Size Estimator (see "About" page to learn more)Honda CBR300R 2022 Grand Prix RedHonda CBR650R 2021 Grand Prix Red-01Honda Trail 125 CT125 2022 Glowing RedHonda NC750X 2022 Grand Prix RedHonda CB650R 2021 Matte Jeans Blue MetallicHonda Rebel 1100 CMX1100 2022 Bordeaux Red Metallic
Length2035 mm2130 mm1960 mm2210 mm2130 mm2240 mm
Width720 mm750 mm805 mm846 mm780 mm850 mm (830 mm DCT)
Height1120 mm1150 mm1085 mm1330 mm1075 mm1115 mm
Seat Height780 mm810 mm800 mm800 mm810 mm700 mm
Weight162 kg wet207 kg wet120 kg wet214 kg (manual), 224 kg (DCT) wet202 kg wet223 kg wet (233 kg DCT)
Engine286 cc Single-cylinder, liquid cooled649cc Inline 4, liquid cooled, 16 valve DOHC124,9 cc single-cylinder, air-cooled745 cc Parallel Twin, liquid cooled649cc Inline 4, liquid cooled, 16 valve DOHC1084 cc Parallel-Twin, liquid-cooled, 270º crank
Power30 hp @ 8500 rpm94 hp @ 12000 rpm9 hp @ 7000 rpm58 hp @ 6750 rpm94 hp @ 12000 rpm87 hp @ 7000 rpm
Torque27 Nm @ 7250 rpm64 Nm @ 8500 rpm10 Nm @ 4500 rpm69 Nm @ 4750 rpm64 Nm @ 9500 rpm98 Nm @ 4750 rpm
Transmission6-speed, wet multi-plate clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final driveSemi-automatic 4-speed, automatic clutch, chain final drive6-speed manual, Wet multi-plate assist/slip clutch or DCT automatic, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive6-speed (manual or automatic/DCT), slip/assit clutch, chain final drive
Fuel Capacity13 liters15,4 liters5,3 liters14,1 liters15,4 liters13,6 liters
Suspension- Front: 37 mm forks, 120 mm travel - Rear: mono-shock, adjustable preload, 103 mm travel- Front: 41mm inverted telescopic fork, 108 mm travel - Rear: single shock, adjustable preload, 128 mm travel- Front: 27 mm inverted forks, 110 mm travel - Rear: twin shocks, 86 mm travel- Front: 41 mm telescopic forks, 120 mm travel - Rear: Pro-link mono shock, pre-load adjustable, 120 mm travel- Front: 41 mm inverted telescopic fork, 108 mm travel, - Rear: single shock, adjustable preload, 128 mm travel- Front: 43 mm telescopic fork, adjustable preload, 122 mm travel - Rear: twin-shocks, adjustable preload, 94 mm travel
Tyres- Front: 110/70-17 - Rear: 140/70-17- Front: 120/70-17 - Rear: 180/55-17- Front: 80/90-17 - Rear: 80/90-17- Front: 120/70-17 - Rear: 160/60-17- Front: 120/70-17 - Rear: 180/55-17- Front: 130/70-18 - Rear: 180/65-16
Brakes- Front: 296 mm disc, 2-piston caliper - Rear: 220 mm disc, 1-piston caliper - ABS available- Front: 2x 310mm discs - Rear: 240mm disc - ABS available- Front: 220 mm disc, single-piston caliper - Rear: 190 mm disc, single-piston caliper - ABS available- Front: 320 mm disc, two-piston caliper - Rear: 240 mm disc, single-piston caliper - ABS available- Front: 2x 310 mm discs - Rear: 240 mm disc - ABS available- Front: 300 mm floating disc, 4-piston caliper - Rear: 256 mm disc, 2-piston caliper - ABS available
InstrumentsAnalogue tachometer, LCD display with speedometer, odometer, clock, trip meter, fuel gauge, temperature gaugeLCD display with digital speedometer, odometer, gear indicator, shift-up indicator, dual trip meters, fuel gauge, clockLCD display with speedometer, odometer, fuel gaugeLCD display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumptionDigital speedometer, odometer, tachometer, gear indicator, fuel gauge, temperature gauge, trip meters, clockInverted LCD display with speedometer, tachometer, odometer, gear-position, a fuel-indicator, engine output mode, torque control level, engine braking mode
Other-LED lights, Traction control, USB-C under seatLED lightsLED lights, riding modes, traction control, engine brake control, engine power control, emergency stop blinking lights, 23-liter utility compartmentTraction control, LED lights, USB-C under seatFull LED lighting, traction control, cruise control, wheelie control (!), USB-C under seat, three-liter underseat storage
