Honda Rebel 250 (1985-2016)

Name: Honda Rebel 250 (1985-2016)
SKU: 1763
Price: 18 MOP
Availability: InStock

CMX250C, Peronist

Category: Honda Tag: Cruiser

Specifications

Engine	234 cc Parallel-twin, air-cooled, carbureted
Power	18,7 hp @ 6500 rpm
Torque	19 Nm @ 5500 rpm
Transmission	5-speed, wet multi-plate clutch, chain final drive
Fuel Capacity	10,5 liters
Length	2115 mm
Width	815 mm
Height	1100 mm
Weight	145 kg wet
Seat Height	675 mm
Suspension	– Front: 33 mm telescopic fork, 120 mm travel – Rear: twin-shocks, adjustable preload, 74 mm travel
Tyres	– Front: 90/100-18 – Rear: 130/90-15
Brakes	– Front: 240 mm disc, 2-piston caliper – Rear: drum

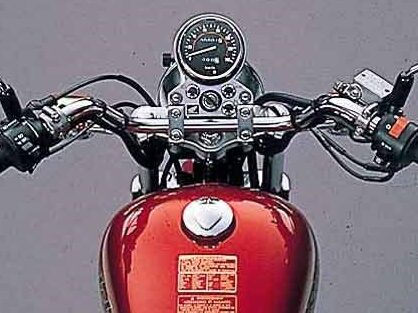

Instruments	Analogue speedometer, odometer, trip meter
Other	–

Dashboard / Support us

T-shirts, mugs, stickers and more:

Quick Comparison

Settings	Honda Rebel 250 (1985-2016) remove	Honda CBR500R (2022+) remove	Honda Goldwing (2019+) remove	Honda Rebel 500/CMX500 (2017-2019) remove	Honda CB750 Hornet (2023+) remove	Honda CB500X (2019-2021) remove
Name	Honda Rebel 250 (1985-2016) remove	Honda CBR500R (2022+) remove	Honda Goldwing (2019+) remove	Honda Rebel 500/CMX500 (2017-2019) remove	Honda CB750 Hornet (2023+) remove	Honda CB500X (2019-2021) remove

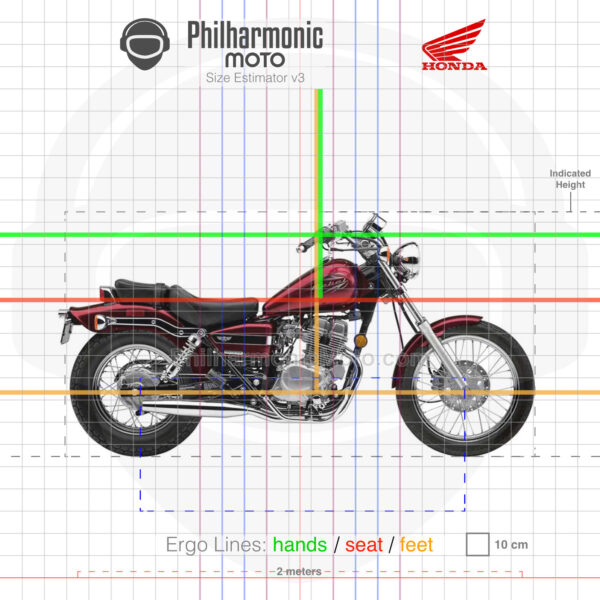

Size Estimator (see "About" page to learn more)
Length	2115 mm	2080 mm	2475 mm	2188 mm	2090 mm	2155 mm
Width	815 mm	760 mm	925 mm	820 mm	780 mm	825 mm
Height	1100 mm	1145 mm	1340/1445 mm (low/high screen position)	1094 mm	1085 mm	1410 mm / 1445 mm (Low/High screen position)
Seat Height	675 mm	785 mm	745 mm	690 mm	795 mm	830 mm
Weight	145 kg wet	192 kg wet	364 kg wet	190 kg wet	190 kg wet	197 kg wet
Engine	234 cc Parallel-twin, air-cooled, carbureted	471 cc Parallel-Twin, liquid-cooled, 180º crank	1833 cc horizontally opposed 6-cylinder, liquid cooled	471 cc Parallel Twin, liquid cooled, 180º crank	755cc Parallel Twin, liquid cooled, 270º crank	471cc Parallel Twin, liquid cooled
Power	18,7 hp @ 6500 rpm	47 hp @ 8600 rpm	125 hp @ 5500 rpm	45 hp @ 8500 rpm	90,5 hp @ 9500 rpm	47 hp @ 8500 rpm
Torque	19 Nm @ 5500 rpm	43 Nm @ 6500 rpm	169 Nm @ 4500 rpm	45 Nm @ 6000 rpm	75 Nm @ 7250 rpm	43 Nm @ 7000 rpm
Transmission	5-speed, wet multi-plate clutch, chain final drive	6-speed, Wet multi-plate slip/assist clutch, chain final drive	6-speed manual + reverse, wet multi-plate clutch, or 7-speed DCT + reverse, shaft final drive	6-speed, Wet multi-plate assist/slip clutch, chain final drive	6-speed manual, Wet multi-plate assist/slip clutch, chain final drive	6-speed, Wet multi-plate assist/slipper clutch, chain final drive
Fuel Capacity	10,5 liters	17,1 liters	21 liters	11,2 liters	15,2 liters	17,5 liters
Suspension	- Front: 33 mm telescopic fork, 120 mm travel - Rear: twin-shocks, adjustable preload, 74 mm travel	- Front: Showa 41mm SFF-BP USD inverted forks, adjustable preload, 110 mm travel, - Rear: mono-shock, adjustable preload, 120 mm travel	- Front: double wishbone, 110 mm travel - Rear: single shock, electronically adjustable preload, 105 mm travel	- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 96 mm travel	- Front: 43 mm inverted forks, pre-load adjustable, 130 mm travel - Rear: Pro-link mono shock, pre-load adjustable, 150 mm travel	- Front: 41mm telescopic forks, pre-load adjustable, 150 mm travel - Rear: mono-shock with 9 stage preload adjuster, 135 mm travel
Tyres	- Front: 90/100-18 - Rear: 130/90-15	- Front: 120/70-17 - Rear: 160/60-17	- Front: 130/70-18 - Rear: 180/60-16	- Front: 130/90-16 - Rear: 150/80-16	- Front: 120/70-17 - Rear: 160/60-17	- Front: 110/80-19 - Rear: 160/60-17
Brakes	- Front: 240 mm disc, 2-piston caliper - Rear: drum	- Front: 296 mm discs, Nissin 2-piston radial calipers - Rear: 240 mm disc, 1-piston caliper - ABS available	- Front brake: 320 mm discs, six-piston Nissin calipers - Rear brake: 320 mm rear disc, six-piston Nissin caliper	- Front: 296 mm disc, 2-piston caliper - Rear: 240 mm disc, single-piston caliper - ABS available	- Front: 296 mm discs, 4-piston caliper - Rear: 240 mm disc, single-piston caliper - ABS available	- Front: 310 mm wavy disc, 2-piston caliper - Rear: 240 mm wavy disc, single-piston caliper
Instruments	Analogue speedometer, odometer, trip meter	LCD display with speedometer, tachometer, odometer, gear position fuel gauge, average consumption, dual trip meters, clock, Water Temp, Shift UP Indicator, emergency braking warning lights	Analogue speedometer and tachometer, touchscreen with mobile connectivity, LCD displays with fuel gauge, temperature gauge, gear indicator, riding modes	Digital speedometer, odometer, fuel gauge, clock	TFT touch display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption, riding modes	LCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, adjustable shift-up indicator
Other	-	LED lights	Airbag, LED lights, Riding modes, Apple CarPlay, traction control, cruise control, hill start assist, TPMS, seat heater	-	LED lights, traction control, cruise control, wheelie control, engine braking, riding modes, USB-C socket, self-canceling indicators, smartphone voice control	LED lights, emergency braking blinking lights
