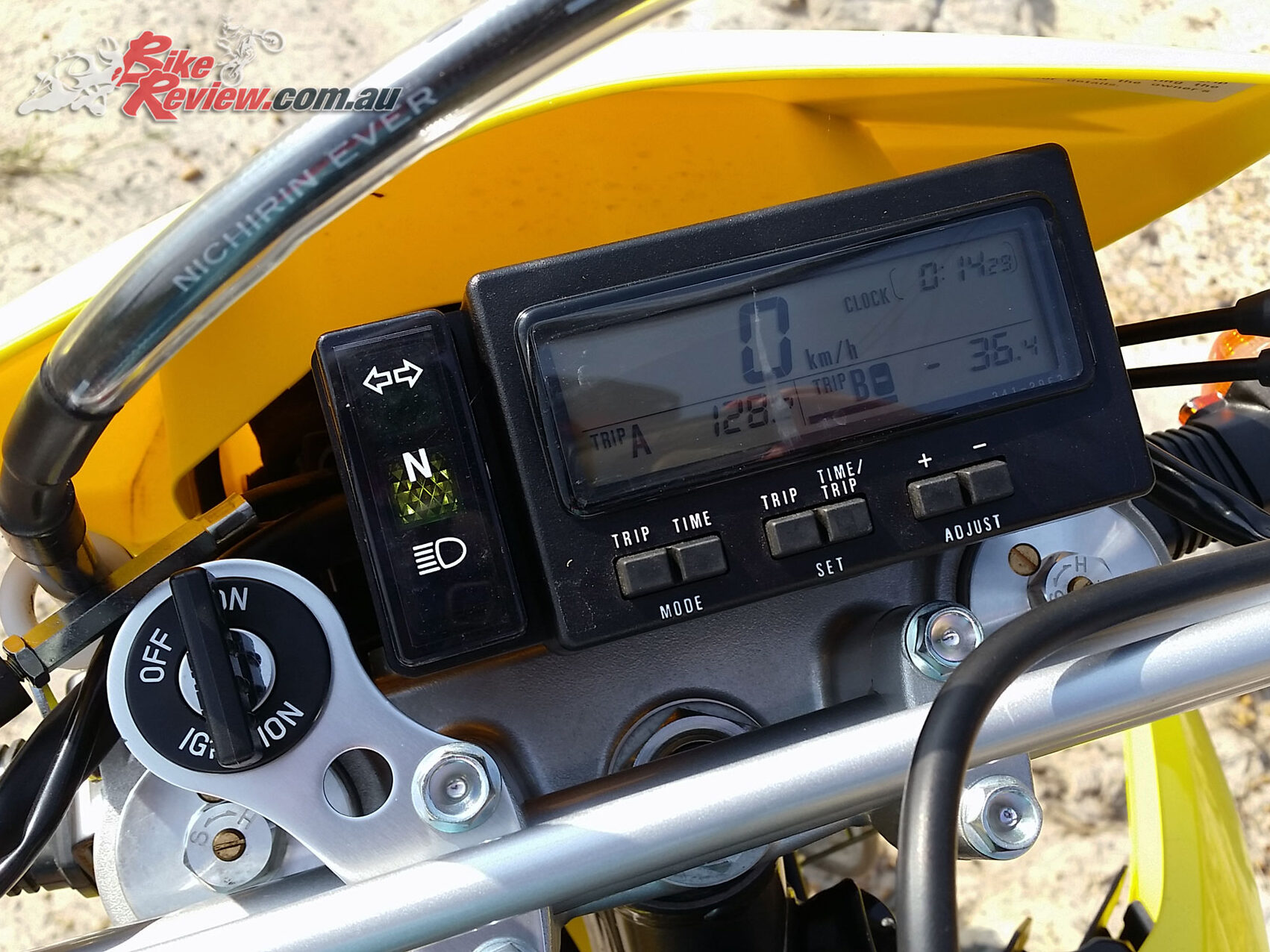

Suzuki DR-Z400E 2018 dashboard

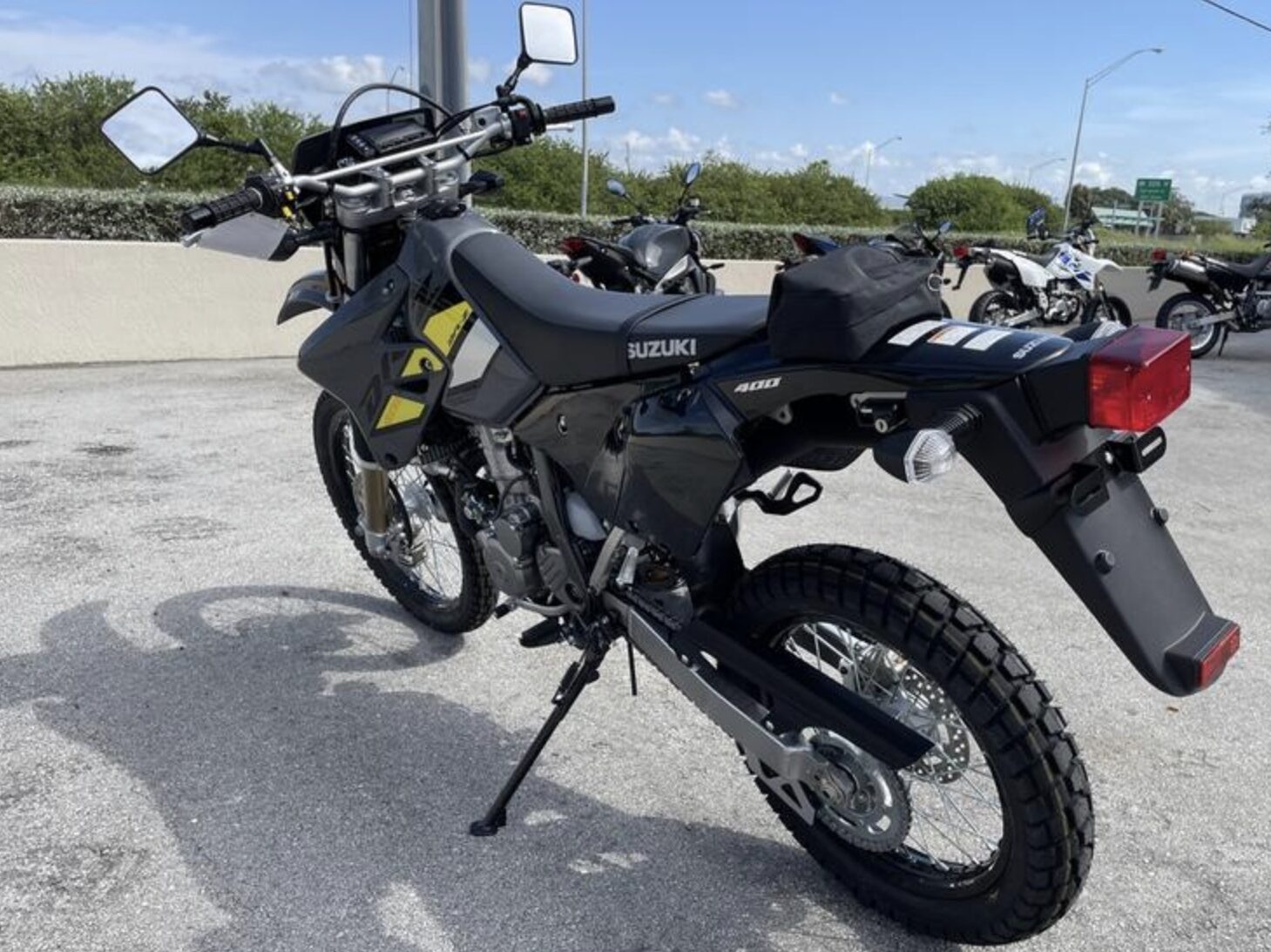

Suzuki DRZ-400S 2022 back

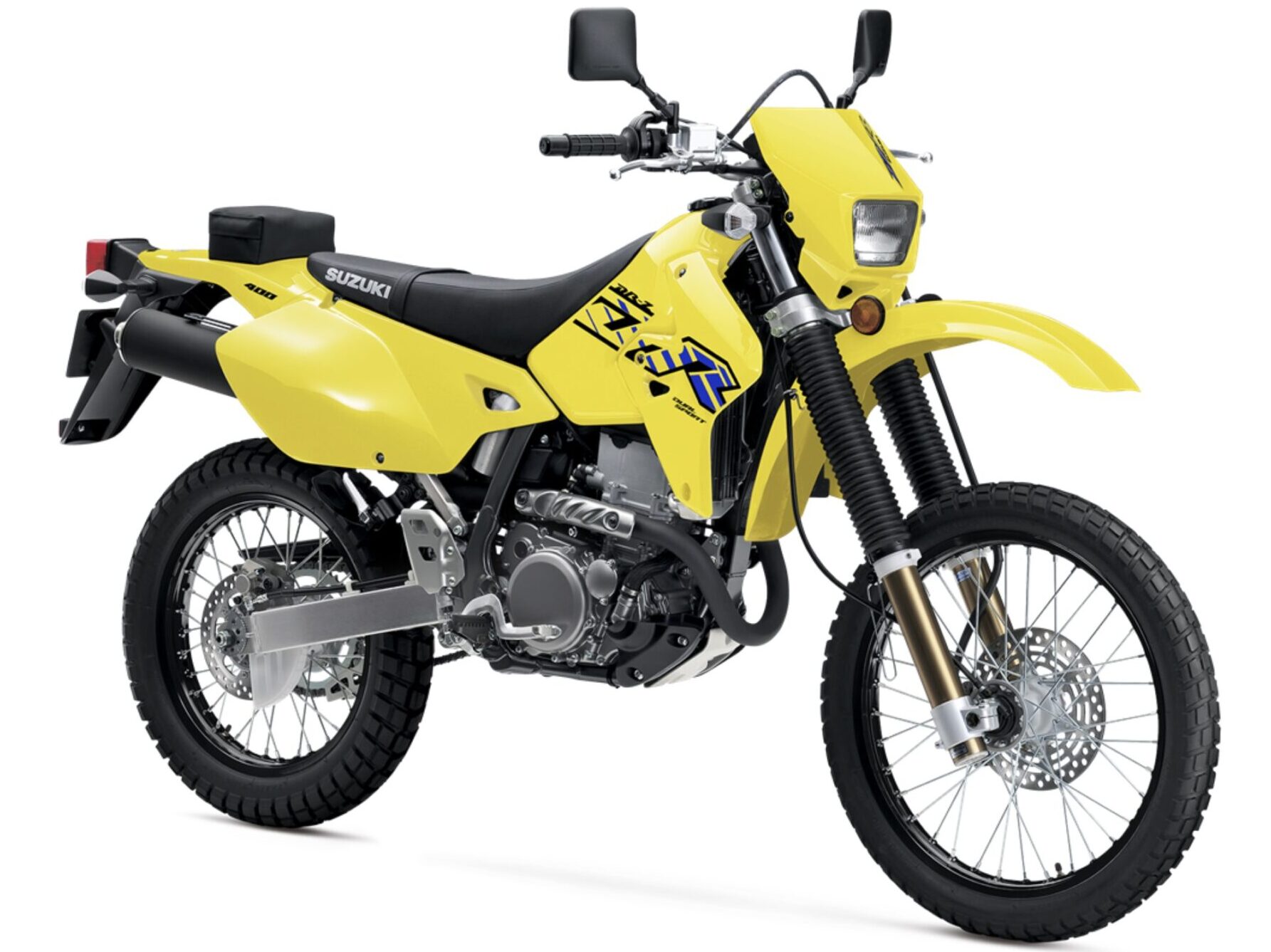

Suzuki DRZ-400S 2023 front

Suzuki DR-Z400S (2000+)

Suzuki DR-Z400S (2000+)

DRZ400S

Category: Tag:
Share:

Specifications

Engine

398 cc Single-cylinder, liquid-cooled, carbureted

Power

40 hp @ 7600 rpm

Power to weight

28 HP/Kg x 100

Torque

39 Nm @ 6600 rpm

Torque to weight

27 Nm/Kg x 100

Transmission

5-speed, wet multi-plate clutch, chain final drive

Fuel Capacity

10 liters

Length

2310 mm

Width

875 mm

Height

1240 mm

Weight

144 kg wet

Seat Height

935 mm

Suspension

– Front: Showa 49 mm telescopic fork, fully adjustable, 288 mm travel
– Rear: mono-shock, fully adjustable, 295 mm travel

Tyres

– Front: 80/100-21
– Rear: 120/90-18

Brakes

– Front: 250 mm disc, 2-piston caliper
– Rear: 220 mm disc, 1-piston caliper

Instruments

LCD display with speedometer, odometer, dual trip meter with addition/subtraction capability, timer, stopwatch, clock
