Yamaha XSR700 Legacy (2023+)

CP2 engine.




Brand: Style:
Share:

Specifications and Features

Engine

689 cc Parallel-twin, liquid-cooled, 270º crank

Power

72 hp @ 8750 rpm

Power to weight ratio

38 HP/100kg

Torque

67 Nm @ 6500 rpm

Torque to weight ratio

36 Nm/100kg

Transmission

– 6-speed, wet multi-plate clutch
– Chain final drive

Fuel Capacity

14 litres

Length

2075 mm

Width

865 mm

Height

1120 mm

Weight

– 190 kg wet
– Max load: 169 kg

Seat Height

855 mm

Suspension

– Front: 41 mm telescopic fork, 130 mm travel
– Rear: mono-shock, adjustable preload, 130 mm travel

Tyres

– Front: 120/70-17
– Rear: 180/55-17

Brakes

– Front: 298 mm discs, 4-piston calipers
– Rear: 245 mm disc, 1-piston caliper
– ABS available

Instruments

– LCD display with speedometer, tachometer, odometer, gear indicator, fuel gauge, dual trip meters, reserve trip, average and instant consumption, ambient and engine temperature, clock

Other

– LED lights
– Adjustable brake lever, foot pegs with removable rubber. Optional: USB port, heated grips

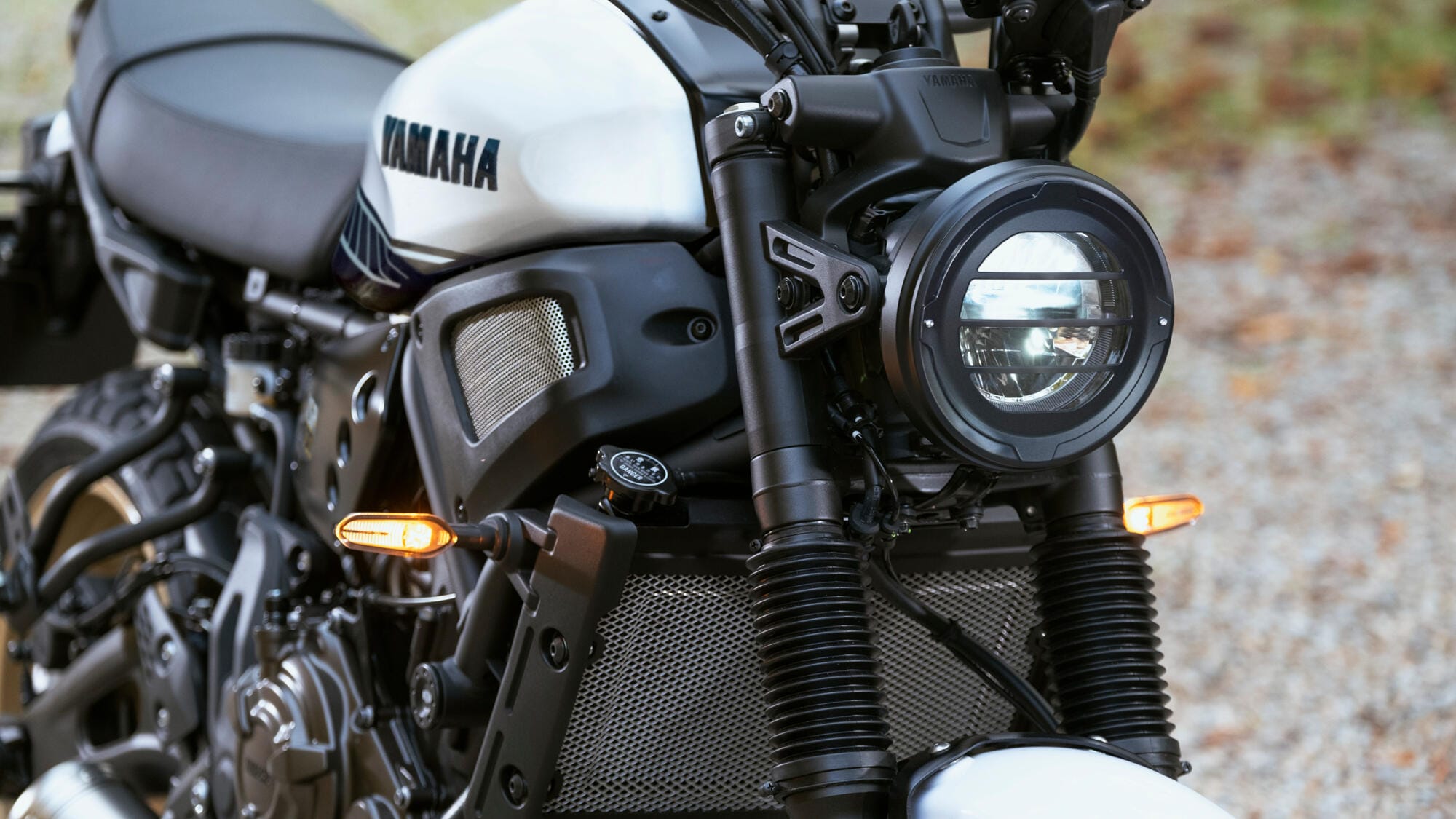

Yamaha XSR700 Legacy 2023 Speedblock Silver dashboard Yamaha XSR700 Legacy 2023 Speedblock Silver front Yamaha XSR700 Legacy 2023 Speedblock Silver back
