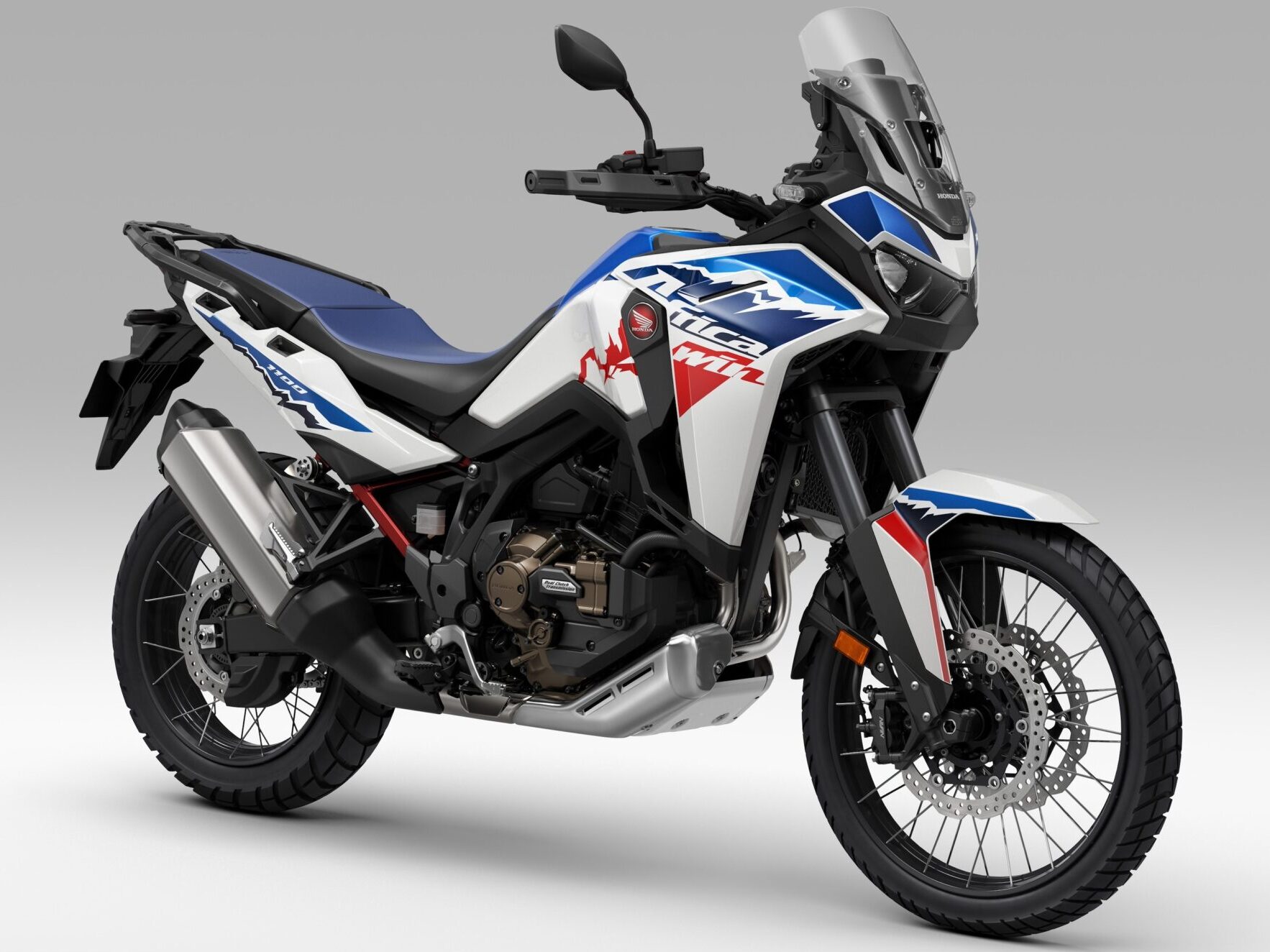

Honda Africa Twin / ES (2024+)

CRF1100L

Africa Twin ES: same bike, fitted with Showa EERA Electronic Suspension.

Updated: 12 June 2024

Launch decade: Style: Brand:

Specifications and Features

Length

2330 mm

Width

960 mm

Height

1485 mm (adjustable screen)

Seat Height

850/870 mm. (optional: 825 to 885)

Weight

– 231 kg (manual), 242 kg (DCT) wet
– Max load: 204 kg

Engine

1084 cc Parallel-twin, liquid-cooled, 270º crank

Power

100 hp @ 7500 rpm

Power to weight ratio

43 HP/100kg

Torque

112 Nm @ 5500 rpm

Torque to weight ratio

49 Nm/100kg

Transmission

– 6-speed, wet multi-plate slip/assist clutch or DCT automatic
– Chain final drive
– Optional: quick-shifter

Fuel Capacity

18,8 litres

Suspension

– Front: 45 mm inverted fork, preload and DF adjustable, 230 mm travel
– Rear: mono-shock, adjustable preload and rebound, 220 mm travel
– Optional: electronic suspension (ES)

Tyres

– Front: 90/90-21 (-53 cm)
– Rear: 150/70-18 (-46 cm)
– Tubeless

Brakes

– Front: 310 mm floating discs, 4-piston radial calipers
– Rear: 256 mm disc, 1-piston caliper
– Cornering ABS available (switchable)

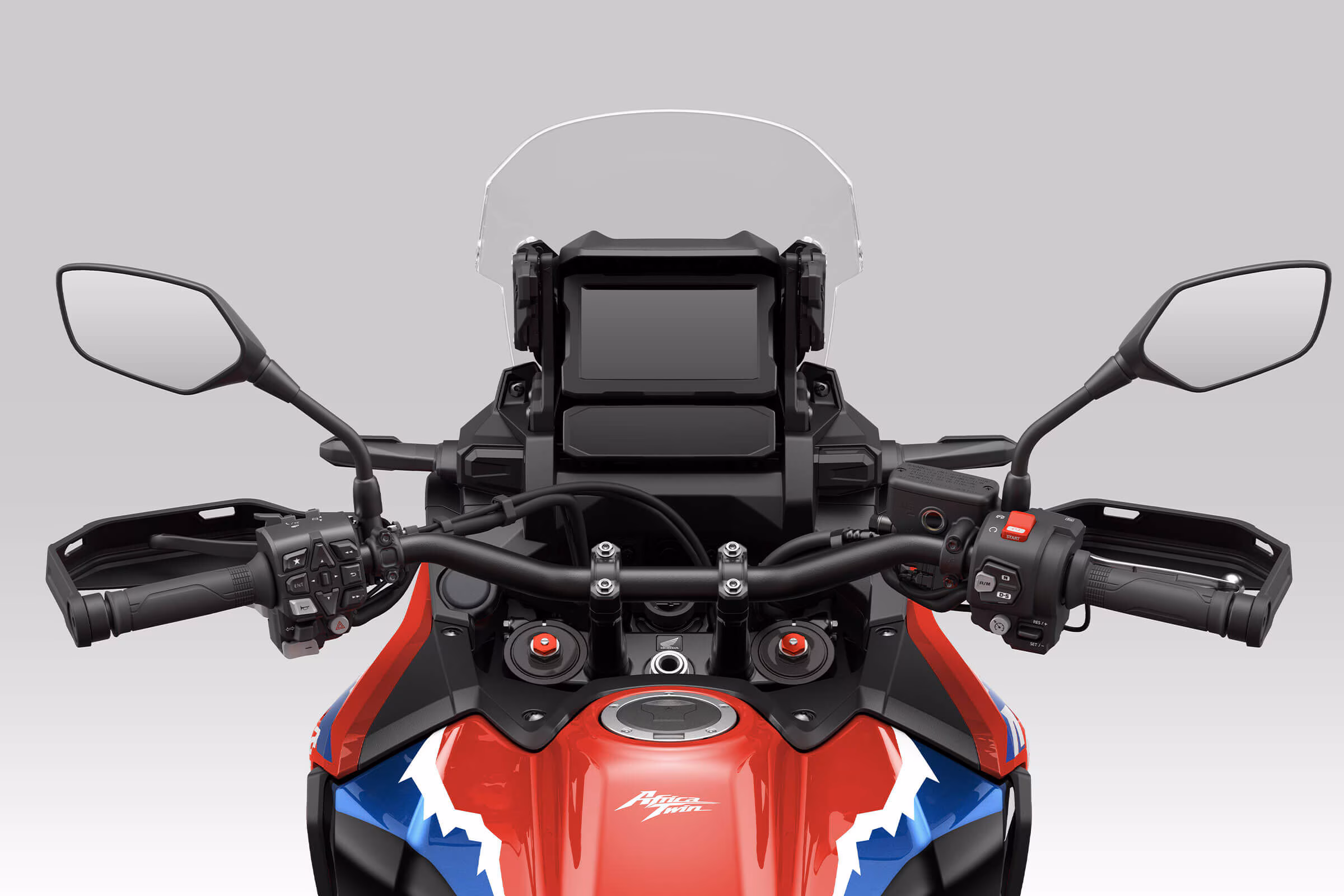

Instruments

– LCD display with speedometer, odometer, gear indicator
– 17 cm (6.5") TFT touchscreen with speedometer, tachometer, gear indicator, fuel gauge, two trip meters, instant and average consumption, clock
– Smartphone connectivity

Other

– LED lights, self-canceling indicators, emergency stop signal
– Riding modes, cornering traction control, wheelie control
– Cruise control, USB port, 12v socket. Optional: centre stand, heated grips

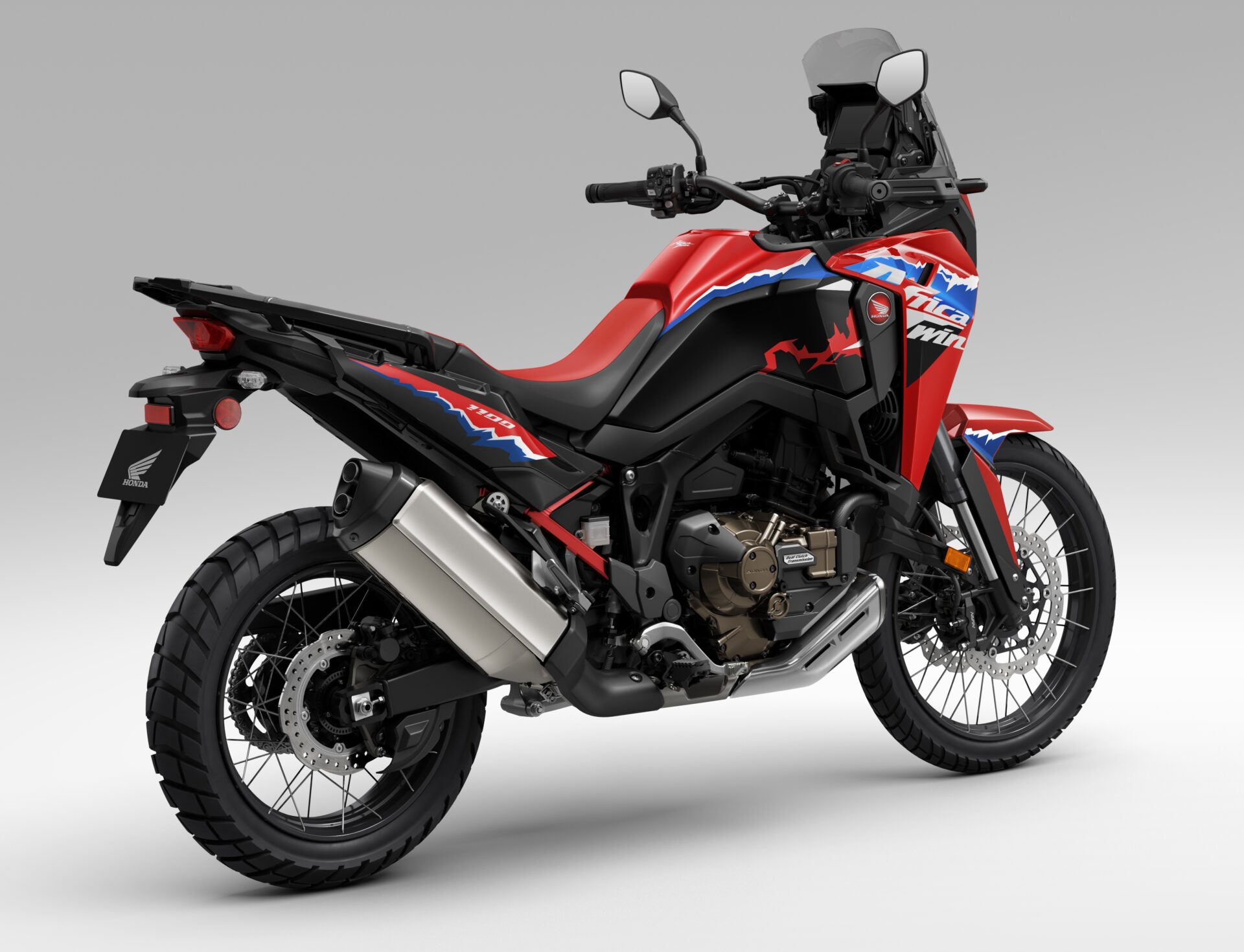

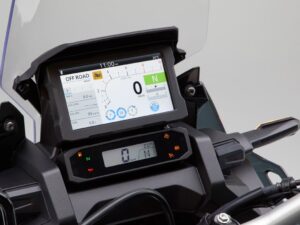

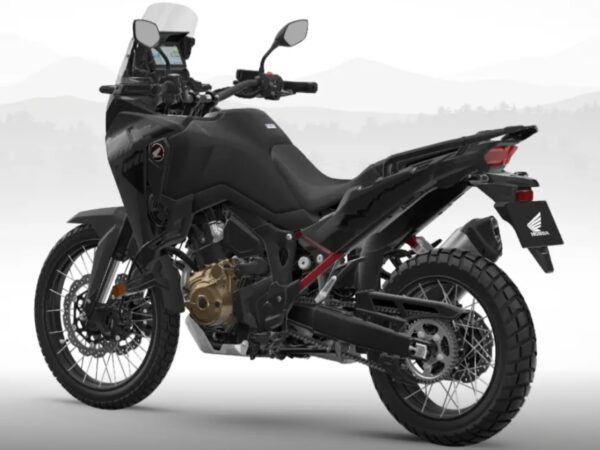

Honda Africa Twin 2020 dashboard Honda Africa Twin 2024 front Honda Africa Twin 2024 back


62 293
Select the fields to be shown. Others will be hidden. Drag and drop to rearrange the order.

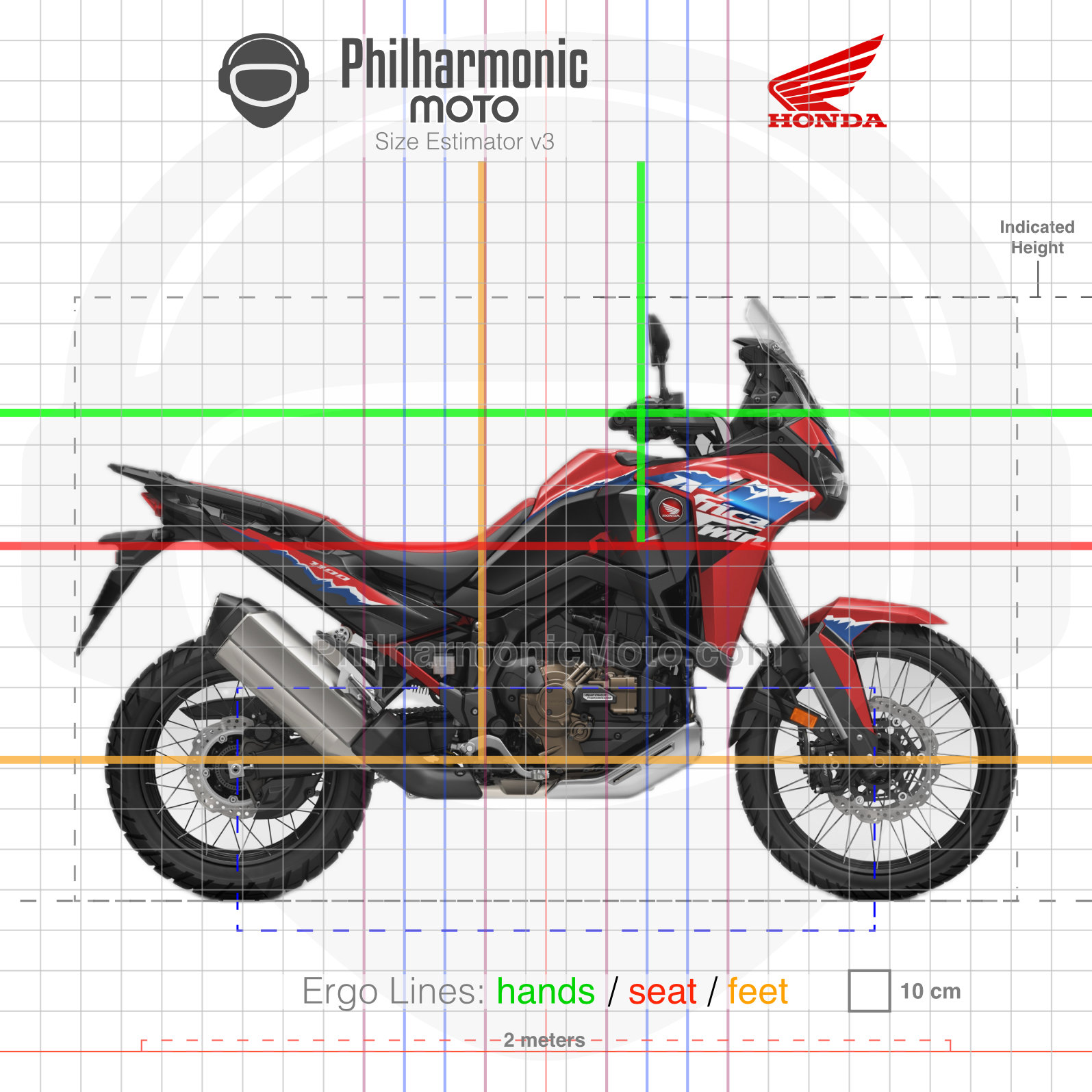

  • Size Estimator (see "About" page to learn more)
