Honda CBR1000RR 2022 dashboard

Honda CBR1000RR (2022+)

Honda CBR1000RR (2022+)

Category: Tag:

Specifications

Engine

998 cc Inline-4, liquid cooled

Power

199 hp @ 10500 rpm

Torque

Transmission

6-speed, Wet multi-plate slip/assist clutch, chain final drive

Fuel Capacity

16,2 liters

Length

2065 mm

Width

720 mm

Height

1125 mm

Weight

196 kg wet

Seat Height

820 mm

Suspension

– Front: 43 mm inverted fork, fully adjustable, 119 mm travel
– Rear: single shock, fully adjustable, 137 mm travel

Tyres

– Front: 120/70-17
– Rear: 190/50-17

Brakes

– Front: 320 mm floating discs, 4-piston calipers
– Rear: 220 mm disc
– cornering ABS available

Instruments

TFT display with speedometer, odometer, gear indicator, shift-up indicator, dual trip meters, fuel gauge, clock

Other

LED lights, Traction control, riding modes, engine brake control, wheelie control, electronic steering damper

Engine Layout

Style

Features

, , ,

Dashboard / Support us

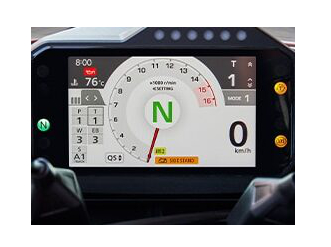

Honda CBR1000RR 2022 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsHonda CBR1000RR (2022+) removeHonda CBR650R (2021+) removeHonda Rebel 500/CMX500 (2020+) removeHonda CRF300L Rally (2021+) removeHonda CB300F (2015-2021) removeHonda Rebel 300/CMX300 (2020+) remove
NameHonda CBR1000RR (2022+) removeHonda CBR650R (2021+) removeHonda Rebel 500/CMX500 (2020+) removeHonda CRF300L Rally (2021+) removeHonda CB300F (2015-2021) removeHonda Rebel 300/CMX300 (2020+) remove

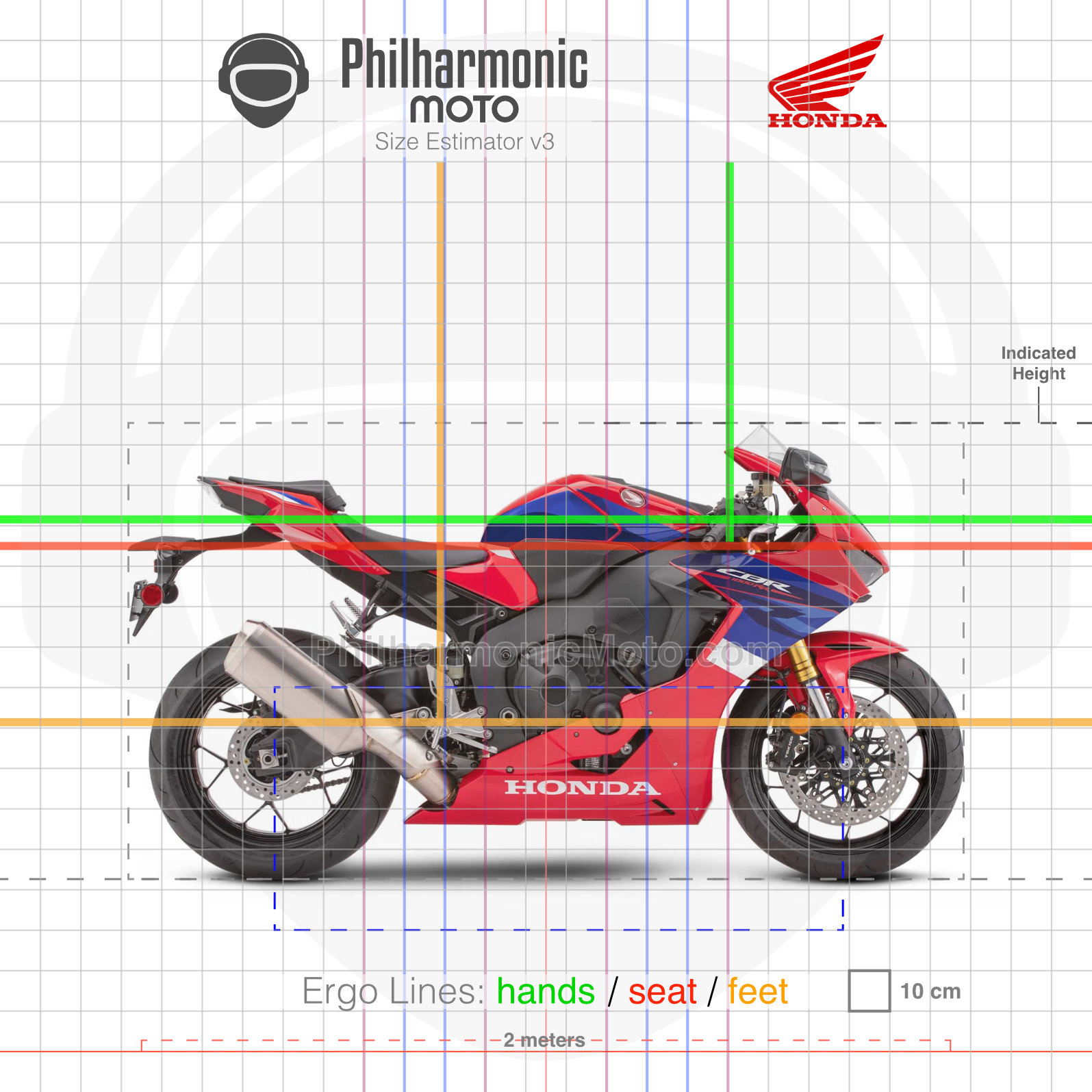

Size Estimator (see "About" page to learn more)Honda CBR1000RR 2022 Grand Prix RedHonda CBR650R 2021 Grand Prix Red-01Honda Rebel 500 cmx500 2020 Matte Axis Grey MetallicHonda CRF300L Rally 2021 redHonda CB300f 2017 silverHonda Rebel 300 CMX300 2022 Pearl Blue
Length2065 mm2130 mm2205 mm2330 mm2035 mm2188 mm
Width720 mm750 mm820 mm920 mm720 mm820 mm
Height1125 mm1150 mm1090 mm1415 mm1120 mm1090 mm
Seat Height820 mm810 mm690 mm885 mm790 mm690 mm
Weight196 kg wet207 kg wet191 kg wet150 kg wet158 kg wet165 kg wet
Engine998 cc Inline-4, liquid cooled649cc Inline 4, liquid cooled, 16 valve DOHC471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank286cc Single-cylinder, liquid cooled286cc Single cylinder, Liquid cooled286cc Single-cylinder, liquid cooled
Power199 hp @ 10500 rpm94 hp @ 12000 rpm47 hp @ 8500 rpm27 hp @ 8500 rpm26 hp @ 8500 rpm27,4 hp
Torque-64 Nm @ 8500 rpm45 Nm @ 6000 rpm26,6 Nm @ 6500 rpm27 Nm @7250 rpm27 Nm
Transmission6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate slip/assist clutch, chain final drive6-speed, slip/assist clutch, chain final drive6-speed manual, Wet multi-plate assist/slip clutch, chain final drive6-speed, Wet multi-plate clutch, chain final drive6-speed, assist/slip clutch, chain final drive
Fuel Capacity16,2 liters15,4 liters11,2 liters12,8 liters13 liters11,2 liters
Suspension- Front: 43 mm inverted fork, fully adjustable, 119 mm travel - Rear: single shock, fully adjustable, 137 mm travel- Front: 41mm inverted telescopic fork, 108 mm travel - Rear: single shock, adjustable preload, 128 mm travel- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 96 mm travel- Front: 43 mm telescopic forks, 259 mm travel - Rear: Pro-link mono shock, 259 mm travel- Front: 37 mm telescopic fork, 120 mm travel - Rear: mono-shock, preload adjustable, 103 mm travel- Front: 41 mm telescopic forks, 121 mm travel - Rear: Dual shocks with adjustable preload, 95 mm travel
Tyres- Front: 120/70-17 - Rear: 190/50-17- Front: 120/70-17 - Rear: 180/55-17- Front: 130/90-16 - Rear: 150/80-16- Front: 80/100-21 - Rear: 120/80-18- Front: 110/70-17 - Rear: 140/70-17- Front: 130/90-16 - Rear: 150/80-16
Brakes- Front: 320 mm floating discs, 4-piston calipers - Rear: 220 mm disc - cornering ABS available- Front: 2x 310mm discs - Rear: 240mm disc - ABS available- Front: 296mm disc, 2-piston caliper - Rear: 240mm disc, single-piston caliper - ABS available- Front: 256 mm disc, two-piston caliper - Rear: 220 mm disc, single-piston caliper - Switchable ABS available- Front: 296 mm disc, 2-piston caliper - Rear: 220 mm disc, single-piston caliper - ABS available- Front: 296mm disc, 2-piston caliper - Rear: 240mm disc, single-piston caliper - ABS available
InstrumentsTFT display with speedometer, odometer, gear indicator, shift-up indicator, dual trip meters, fuel gauge, clockLCD display with digital speedometer, odometer, gear indicator, shift-up indicator, dual trip meters, fuel gauge, clockLCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gaugeLCD display with speedometer, tachometer, clock, fuel gauge, gear indicator, fuel mileage and consumption, average speed, stopwatchLCD display with tachometer, odometer, speedometer, fuel gauge, trip meter, clockLCD screen, digital speedometer, gear position indicator, clock, odometer, trip meter, fuel gauge
OtherLED lights, Traction control, riding modes, engine brake control, wheelie control, electronic steering damperLED lights, Traction control, USB-C under seatFull LED lighting--Full LED lighting
