Honda SH125i (2020+)

“…the fairing-mounted headlight (almost an LED ‘H’)” Press release.


Brand: Style:
Share:

Specifications

Engine

125 cc Single-cylinder, liquid-cooled

Power

13 hp @ 8250 rpm

Power to weight ratio

10 HP/100kg

Torque

12 Nm @ 6500 rpm

Torque to weight ratio

9 Nm/100kg

Transmission

– Automatic CVT, centrifugal clutch
– Belt final drive

Fuel Capacity

7 litres

Length

2090 mm

Width

730 mm

Height

1130 mm

Weight

134 kg wet

Seat Height

799 mm

Suspension

– Front: 33 mm telescopic fork, 89 mm travel
– Rear: twin-shocks, adjustable preload, 83 mm travel

Tyres

– Front: 100/80-16
– Rear: 120/80-16

Brakes

– Front: 240 mm disc, 2-piston caliper
– Rear: 240 mm disc, 1-piston caliper
– ABS available

Instruments

– LCD displays with speedometer, odometer, fuel gauge, average and instant consumption, trip meters, ambient temperature, voltmeter, clock

Other

– LED lights "almost an LED ‘H’ "
– Traction control (swtichable)

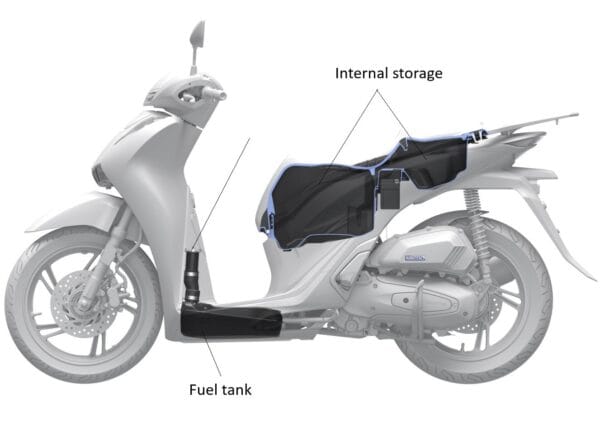

– Fully Keyless, 28 litres under seat compartment with USB-C port, centre stand, "foldable utility hook on the front panel", start-stop system, top case standard in some markets. Optional: keyless 35 litres top case, high windshield

Honda SH125i 2020 dashboard Honda SH125i 2024 Matt Pearl Pacific Blue front Honda SH125i 2020 Pearl Splendor Red back
