KTM 500 EXC-F (2024+)

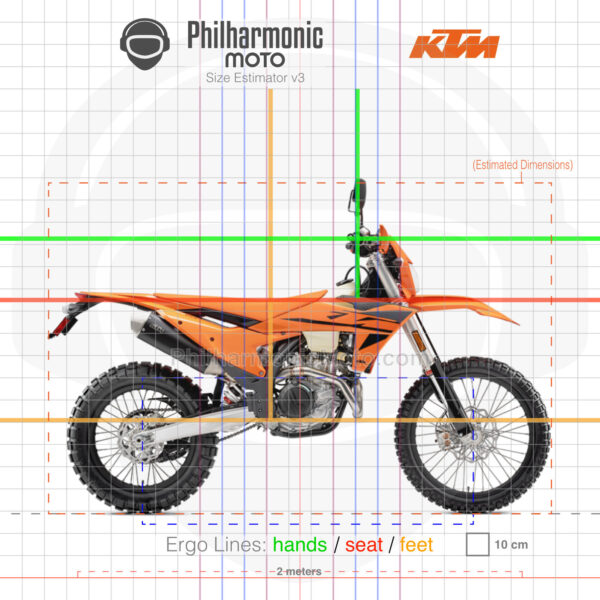

Dimensions based on wheelbase.

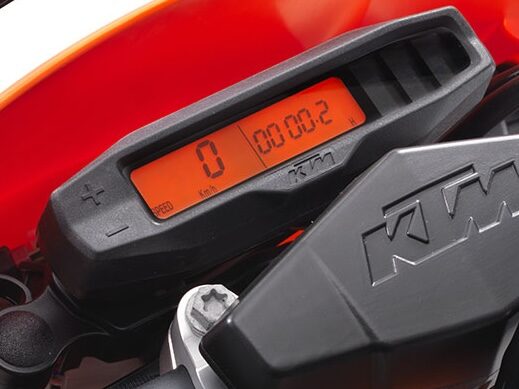

Dashboard picture from previous model, but the display appears to be the same.

Brand: Style:
Share:

Specifications and Features

Engine

511 cc Single-cylinder, liquid-cooled

Power

64 hp

Power to weight ratio

53 HP/100kg

Torque

?

Torque to weight ratio

Transmission

– 6-speed, wet multi-plate hydraulic clutch
– Chain final drive
– Optional: quick-shifter

Fuel Capacity

8,5 litres

Length

2262 mm (estimated)

Width

Height

1489 mm (estimated)

Weight

– 121 kg (estimated wet)
– Max load: 214 kg (estimated)

Seat Height

963 mm

Suspension

– Front: 48 mm inverted fork, adjustable rebound and compression, 300 mm travel
– Rear: mono-shock, fully adjustable, 310 mm travel

Tyres

– Front: 90/90-21
– Rear: 140/80-18

Brakes

– Front: 260 mm disc, floating caliper
– Rear: 220 mm disc, floating caliper

Instruments

– LCD display with speedometer, odometer, trip meters, lap times, clock, operating hours, average speeds, stop watch

Other

– LED headlight and taillight
– Optional: riding modes, traction control
– Adjustable brake lever, lithium-ion battery

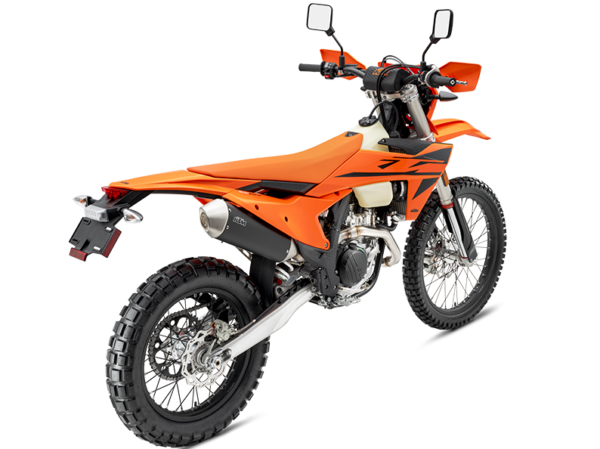

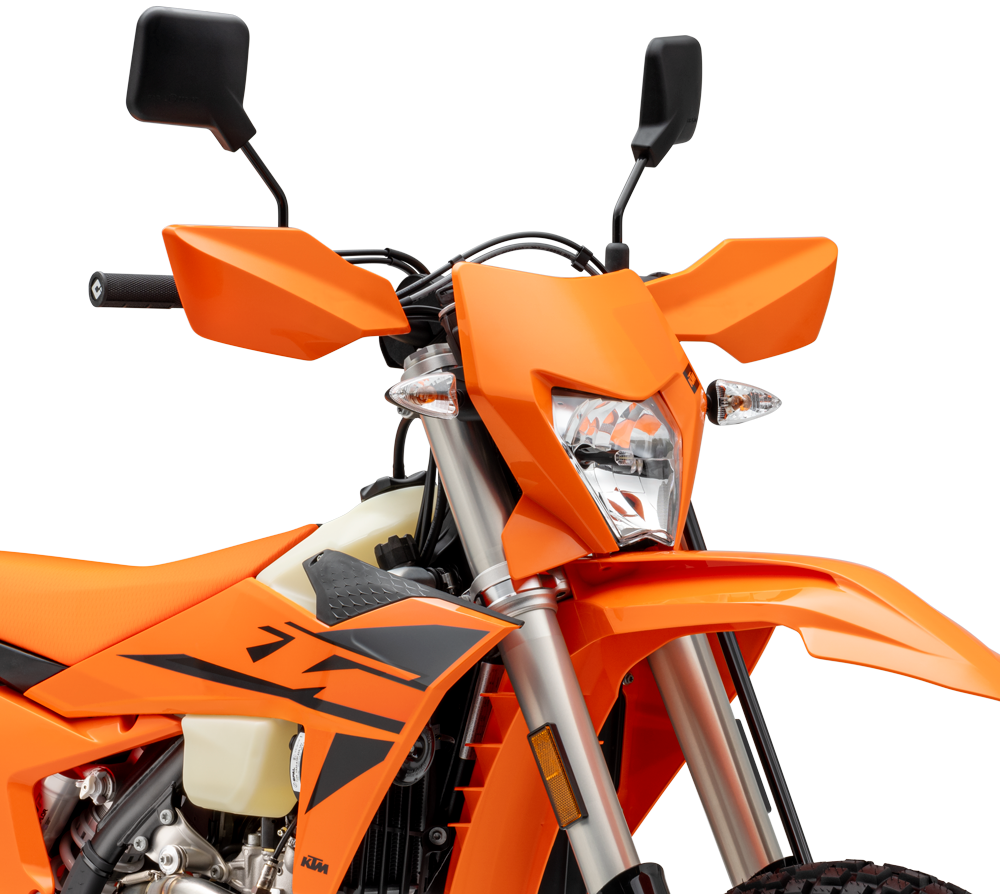

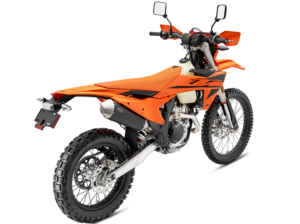

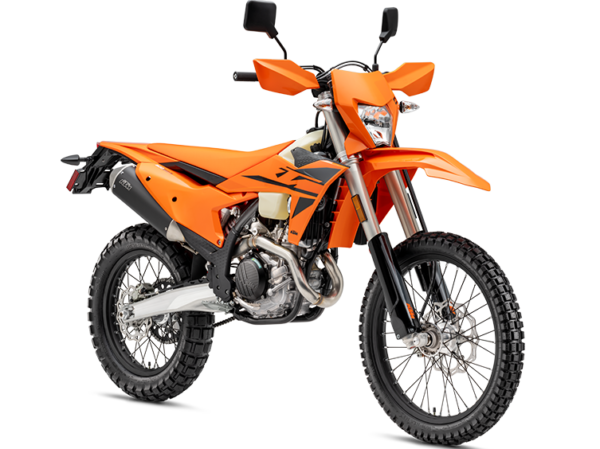

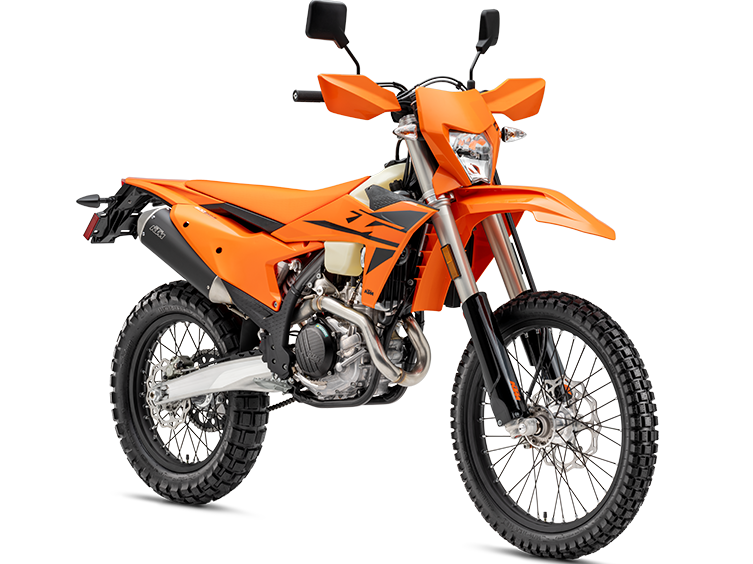

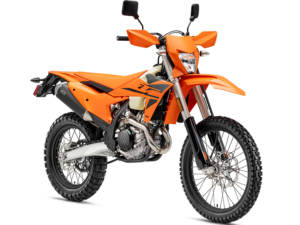

KTM 500 EXC-F 2023 dashboard KTM 500 EXC-F 2024 front KTM 500 EXC-F 2024 back
