Suzuki V-Strom 1050XT 2022 dashboard

Suzuki V-Strom 1050XT (2020-2022)

Suzuki V-Strom 1050XT (2020-2022)

DL1050 XT Vstrom

Category: Tag:

Specifications

Engine

1037 cc V-Twin, liquid-cooled, 90º crank

Power

107,4 hp @ 8500 rpm

Torque

100 Nm @ 6000 rpm

Transmission

6-speed, Wet multi-plate slip/assist hydraulic clutch, chain final drive

Fuel Capacity

20 liters

Length

2265 mm

Width

940 mm

Height

1465/1510 mm (low/high screen position)

Weight

247 kg wet

Seat Height

850/870 mm (adjustable)

Suspension

– Front: KYB 43 mm inverted forks, fully adjustable, 160 mm travel
– Rear: KYB mono-shock, fully adjustable, remote preload, 160 mm travel

Tyres

– Front: 110/80-19
– Rear: 150/70-17

Brakes

– Front: 310 mm floating discs, Tokico monobloc 2-piston radial calipers
– Rear: 260 mm disc, 1-piston caliper
– switchable cornering ABS available

Instruments

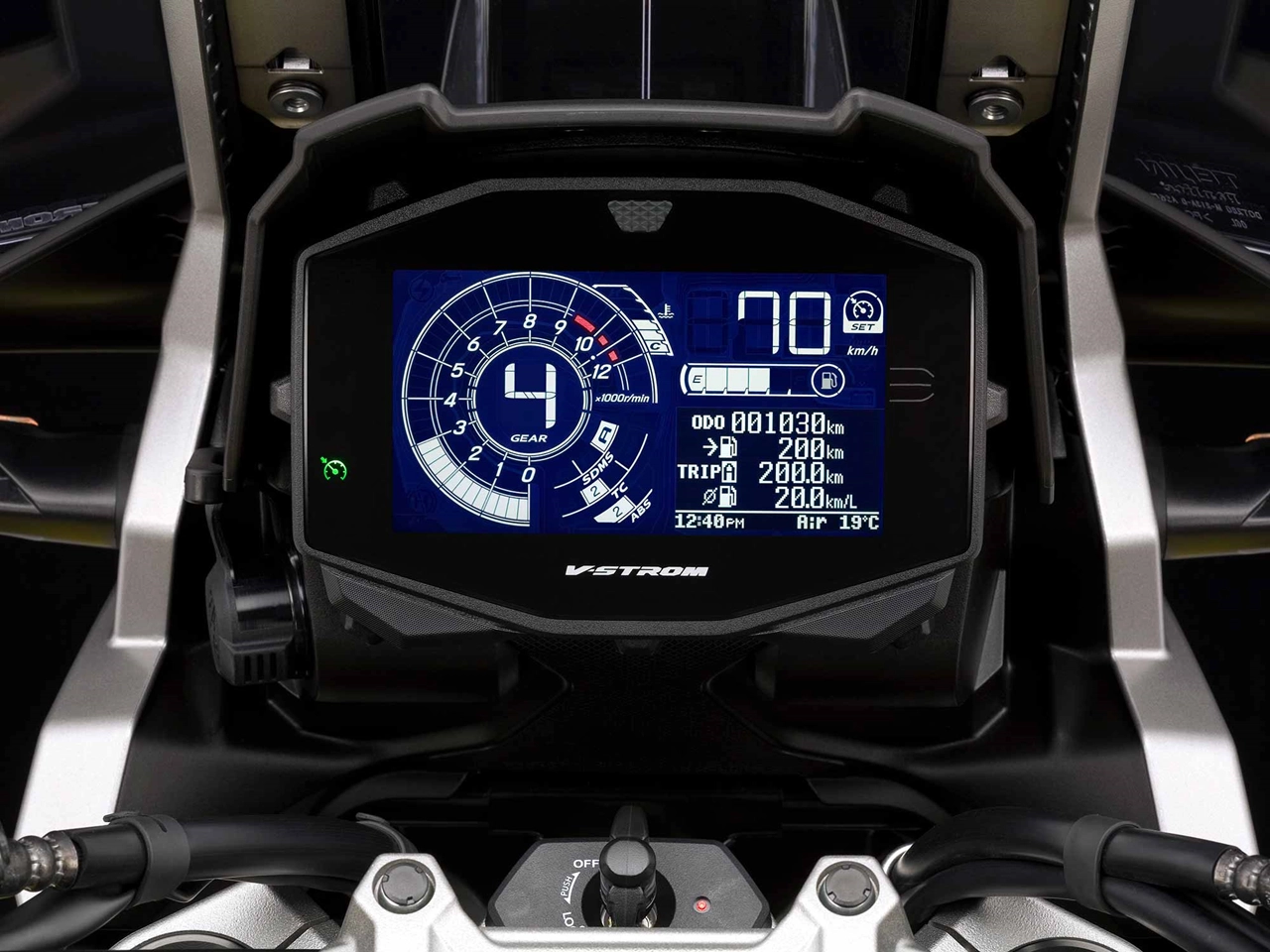

Inverted LCD display with tachometer, speedometer, odometer, dual trip meter, gear position, coolant and air temperature, fuel consumption, fuel gauge, clock

Other

LED lights, Traction control, riding modes, easy-start, low rpm assist, USB port on dashboard, 12v socket under seat, cruise control, hill-hold, centre stand

Dashboard / Support us

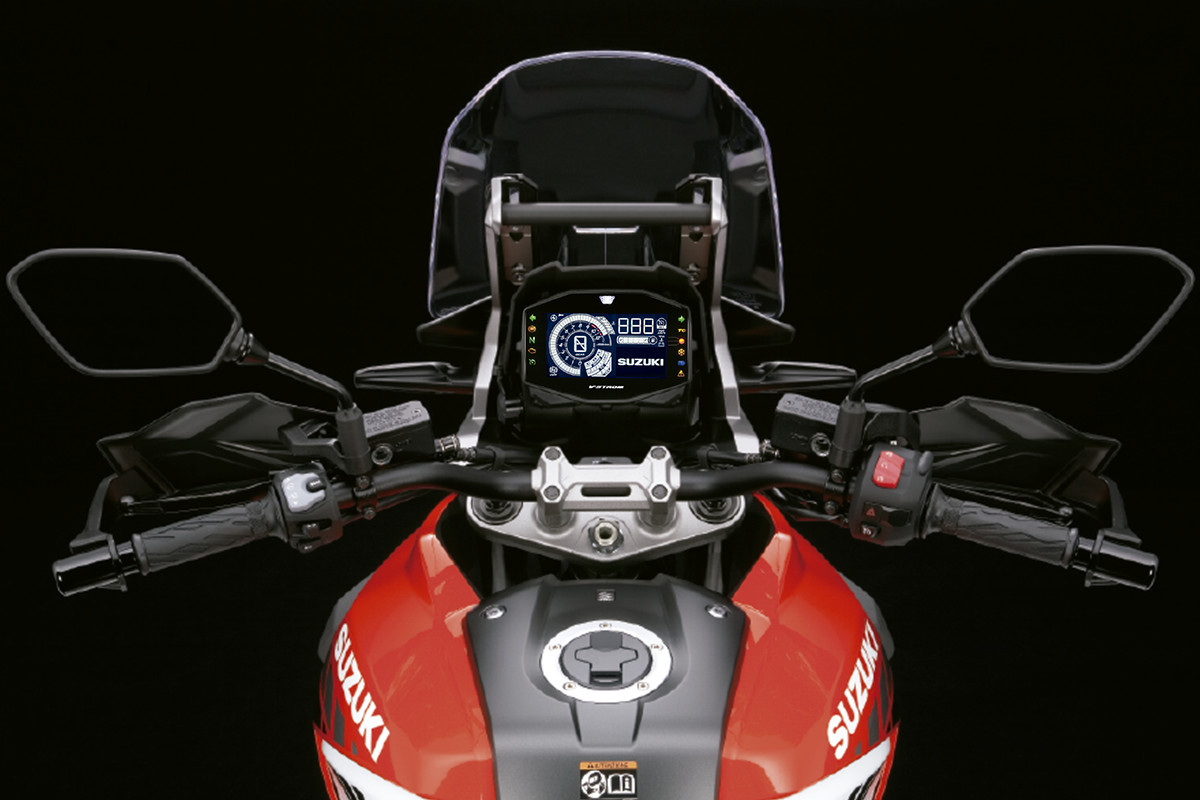

Suzuki V-Strom 1050XT 2022 dashboard



T-shirts, mugs, stickers and more:

Quick Comparison

SettingsSuzuki V-Strom 1050XT (2020-2022) removeKTM 790 Adventure (2023+) removeHonda Africa Twin (2020+) removeBMW F 750 GS (2018+) removeHonda CB500X (2019-2021) removeHonda CB500X (2022+) remove
NameSuzuki V-Strom 1050XT (2020-2022) removeKTM 790 Adventure (2023+) removeHonda Africa Twin (2020+) removeBMW F 750 GS (2018+) removeHonda CB500X (2019-2021) removeHonda CB500X (2022+) remove
Size Estimator (see "About" page to learn more)Suzuki V-Strom 1050XT 2022 Pearl Brilliant White - Glass Blaze OrangeKTM 790 Adventure 2023 whiteHonda Africa Twin 2022 Grand Prix RedBMW F 750 GS 2023 Light WhiteHonda CB500X 2019 Grand Prix RedHonda CB500X 2022 Pearl Organic Green
Length2265 mm2191 mm (estimated)2330 mm2255 mm2155 mm2155 mm
Width940 mm-960 mm922 mm825 mm830 mm
Height1465/1510 mm (low/high screen position)1430 mm (estimated)1395 mm1225 mm1410 mm / 1445 mm (Low/High screen position)1410 mm / 1445 mm (Low/High screen position)
Seat Height850/870 mm (adjustable)840-860 mm850/870 mm815 mm830 mm830 mm
Weight247 kg wet199 kg wet226 kg (manual), 236 kg (DCT) wet227 kg wet197 kg wet199 kg wet
Engine1037 cc V-Twin, liquid-cooled, 90º crank799 cc Parallel-twin, liquid-cooled1084 cc Parallel Twin, liquid cooled853 cc Parallel-twin, liquid-cooled471cc Parallel Twin, liquid cooled471cc Parallel Twin, liquid cooled, 8 valve DOHC, 180º crank
Power107,4 hp @ 8500 rpm95 hp @ 9000 rpm100 hp @ 7500 rpm77 hp @ 7500 rpm47 hp @ 8500 rpm47 hp @ 8600 rpm
Torque100 Nm @ 6000 rpm87 Nm @ 8000 rpm105 Nm @ 6250 rpm83 Nm @ 6000 rpm43 Nm @ 7000 rpm43 Nm @ 6500 rpm
Transmission6-speed, Wet multi-plate slip/assist hydraulic clutch, chain final drive6-speed, assist/slip clutch, chain final drive6-speed manual, Wet multi-plate assist/slip clutch or DCT automatic, chain final drive6-speed, wet multi-plate slip/assist clutch, chain final drive6-speed, Wet multi-plate assist/slipper clutch, chain final drive6-speed, Wet multi-plate assist/slip clutch, chain final drive
Fuel Capacity20 liters20 liters18,8 liters15 liters17,5 liters17,5 liters
Suspension- Front: KYB 43 mm inverted forks, fully adjustable, 160 mm travel - Rear: KYB mono-shock, fully adjustable, remote preload, 160 mm travel- Front: 43 mm inverted fork, 200 mm travel - Rear: single shock, adjustable preload, 200 mm travel- Front: 45 mm inverted forks, pre-load and DF adjustable, 230 mm travel - Rear: Pro-link mono shock, pre-load and rebound adjustable, 220 mm travel- Front: 41 mm telescopic fork, 170 mm travel - Rear: single shock, adjustable preload and rebound damping, 170 mm travel- Front: 41mm telescopic forks, pre-load adjustable, 150 mm travel - Rear: mono-shock with 9 stage preload adjuster, 135 mm travel- Front: Showa 41 mm SFF-BP USD forks, pre-load adjustable, 135 mm travel - Rear: Prolink mono with 5 stage preload adjuster, 135 mm travel
Tyres- Front: 110/80-19 - Rear: 150/70-17- Front: 90/90-21 - Rear: 150/70-18- Front: 90/90-21 - Rear: 150/70-18- Front: 110/80-19 - Rear: 150/70-17- Front: 110/80-19 - Rear: 160/60-17- Front: 110/80-19 - Rear: 160/60-17
Brakes- Front: 310 mm floating discs, Tokico monobloc 2-piston radial calipers - Rear: 260 mm disc, 1-piston caliper - switchable cornering ABS available- Front: 320 mm discs, 4-piston radial caliper - Rear: 260 mm disc, 2-piston floating caliper - cornering ABS available- Front: 310 mm floating discs, 4-piston calipers - Rear: 256 mm disc, single-piston caliper - ABS available- Front: 305 mm floating discs, 2-piston floating calipers - Rear: 265 mm disc, 1-piston floating caliper - cornering ABS available- Front: 310 mm wavy disc, 2-piston caliper - Rear: 240 mm wavy disc, single-piston caliper- Front: Dual 296 mm disc, Nissin radial-mount 2-piston calipers - Rear: 240 mm disc, single-piston caliper
InstrumentsInverted LCD display with tachometer, speedometer, odometer, dual trip meter, gear position, coolant and air temperature, fuel consumption, fuel gauge, clockTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, clock- LCD display with speedometer, odometer, gear indicator - TFT touch display with speedometer, tachometer, clock, fuel meter, two trip meters, gear position indicator, instant and average fuel consumption, riding modes, Apple CarPlay, Android AutoTFT display with tachometer, speedometer, gear position, fuel consumption, trip meter, odometer, fuel gauge, air temperature, clockLCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, adjustable shift-up indicatorLCD display with Speedometer, Bar Graph Tachometer, Dual Trip Meters, Fuel Level and Consumption Gauge, Clock, Water Temp, Gear position, Shift UP Indicator
OtherLED lights, Traction control, riding modes, easy-start, low rpm assist, USB port on dashboard, 12v socket under seat, cruise control, hill-hold, centre standLED lights, cornering traction control, riding modes, off-road ABS, adjustable brake and clutch levers, steering damper, smartphone connectivityLED lights, traction control, cruise control, wheelie control, USB socket, self-canceling indicators, riding modes, switchable cornering ABSLED lights, riding modes, traction control, USB port, mobile phone connectivity, self-canceling indicatorsLED lights, emergency braking blinking lightsLED lights, emergency braking blinking lights, "cam chain has the surface of its pins treated with Vanadium"
